SPESIFIKASI TOTAL STATION TOPCON ES105 BATAM

Untuk info harga dan pemesanan silakan hubungi Kami !

Informasi Kontak dan No Handphone Tertera

Best Regards: indosurta survey batam
hubungi segera!!

asep di

no hp: 082319685554/082284065570

email:asepindosurta@gmail.com

blog: indosurtasurvey.blogspot.com

web: www.indosurta.co.id

alamat:Batam centre, batam kepulauan riau,Indonesia

1. 1. Your local Authorized Topcon dealer is: topconpositioning.com 7400 National Drive • Livermore • CA 94550 (925) 245-8300 Specifications Reflectorless Total Stations • Advanced Security and Maintenance with New TSshield™ • Fast and Powerful EDM • Exclusive LongLink™ Communications Functionality • Advanced Angle Accuracy • Super Long Battery Life – 36 Hours! • Rugged, Waterproof Design ES Series MAGNET Field Cloud connected field controller software for use with total stations and GPS rovers. With ES LongLink™ communication, the MAGNET Field controller can be operated, with the prism, at the point of measurement. Specifications subject to change without notice. ©2012 Topcon Corporation All rights reserved. P/N: 7010-2097 Rev. A Printed in U.S.A. 1/12 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Topcon is under license. Other trademarks and trade names are those of their respective owners. For more specification information: topconpositioning.com/es-series ES Series OPTIONAL Software MAGNET Solutions A family of software solutions that streamlines the workflow for surveyors, contractors, engineers and mapping professionals. Angle Measurement Min. Resolution/Accuracy ES-101 0.5”/1” ES-102 1”/2” ES-103 1”/3” ES-105 1”/5” ES-107 1”/7” IACS (Independent Angle Calibration System) Standard on 1” & 2” models Compensation Dual-axis compensator Distance Measurement Prism EDM Range 4000m (ES-107 3000m) Prism EDM Accuracy 2mm+2ppm Non-Prism Range 500m Non-Prism Accuracy 3mm+2ppm (0.3-200m) Measuring Time Fine: 0.9 sec Rapid: 0.7 sec Tracking: 0.3 sec Communications • LongLink™ rover communications utilizing Bluetooth® Class 1 • USB 2.0 Slot (Host + Slave) • RS-232C Serial General Display/Keyboard Dual, Graphic, Backlit LCD (ES-107 Single) Battery Operation Up to 36 hours Dust/Water Protection IP66 Wireless Connection Bluetooth® Class 1 Operating Range -30C to +60C -35C to +60C* *special arctic version To watch a video on the ES, follow this QR code link: MAGNET Office Connect to the MAGNET Cloud directly from your CAD software. Office is full-featured CAD and processing software, or use MAGNET through direct integration in Autodesk products. MAGNET Enterprise See every set of data and stay connected with both Field and Office with this cloud managed interface. Unprecedented productivity can be yours with Enterprise. © 2012 Google Map Data

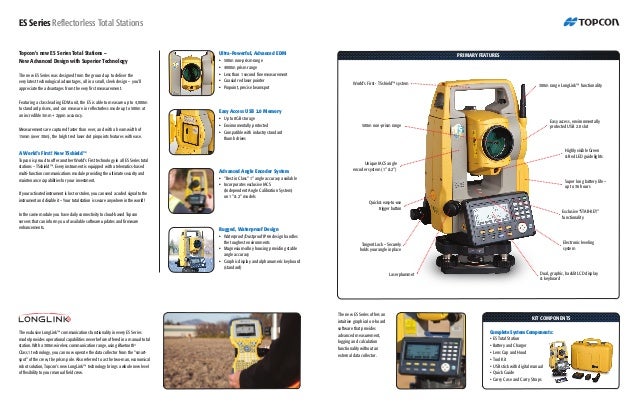

2. 2. Easy access, environmentally protected USB 2.0 slot 300m range LongLink™ functionality Tangent Lock – Securely holds your angle in place Unique IACS angle encoder system (1” & 2”) Super long battery life – up to 36 hours World’s First - TSshield™ system Quick & easy-to-use trigger button Topcon’s new ES Series Total Stations – New Advanced Design with Superior Technology The new ES Series was designed from the ground up to deliver the very latest technological advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement. Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy. Measurements are captured faster than ever, and with a beam width of 15mm (over 30m), the bright red laser dot pinpoints features with ease. A World’s First! New TSshield™ Topcon is proud to offer another World’s First technology in all ES Series total stations – TSshield™. Every instrument is equipped with a telematics-based multi-function communications module providing the ultimate security and maintenance capabilities for your investment. If your activated instrument is lost or stolen, you can send a coded signal to the instrument and disable it – Your total station is secure anywhere in the world! In the same module you have daily connectivity to cloud-based Topcon servers that can inform you of available software updates and firmware enhancements. ES Series Reflectorless Total Stations Ultra-Powerful, Advanced EDM • 500m non-prism range • 4000m prism range • Less than 1 second fine measurement • Coaxial red laser pointer • Pinpoint, precise beamspot Easy Access USB 2.0 Memory • Up to 8GB storage • Environmentally protected • Compatible with industry standard thumb drives Advanced Angle Encoder System • “Best in Class” 1” angle accuracy available • Incorporates exclusive IACS (Independent Angle Calibration System) on 1” & 2” models Rugged, Waterproof Design • Waterproof/Dustproof IP66 design handles the toughest environments • Magnesium-alloy housing providing stable angle accuracy • Graphic display and alphanumeric keyboard (standard) Complete System Components: • ES Total Station • Battery and Charger • Lens Cap and Hood • Tool Kit • USB stick with digital manual • Quick Guide • Carry Case and Carry Straps The exclusive LongLink™ communications functionality in every ES Series model provides operational capabilities never before offered in a manual total station. With a 300m wireless communication range, using Bluetooth® Class 1 technology, you can now operate the data collector from the “smart- spot” of the crew, the prism pole. Also referred to as the two-man, economical robot solution, Topcon’s new LongLink™ technology brings a whole new level of flexibility to your manual field crew. The new ES Series offers an intuitive graphical on-board software that provides advanced measurement, logging and calculation functionality without an external data collector. PRIMARY FEATURES KIT COMPONENTS 500m non-prism range Highly visible Green & Red LED guidelights Dual, graphic, backlit LCD display & keyboard Laser plummet Exclusive “STAR-KEY” functionality Electronic leveling system
