MENJUAL TOTAL STATION SOKKIA CX 101,102,103,104,105 DI BATAM

Untuk info harga dan pemesanan silakan hubungi Kami !

Informasi Kontak dan No Handphone Tertera

Best Regards: indosurta survey batam
hubungi segera!!

asep di

no hp: 082319685554/082284065570

email:asepindosurta@gmail.com

blog: indosurtasurvey.blogspot.com

web: www.indosurta.co.id

alamat:Batam centre, batam kepulauan riau,Indonesia

TOTAL STATION SOKKIA CX-105, CX-103, CX-102.

1. 1. Control panel location*8 Trigger key Data storage Dual-axis compensator / Collimation compensation Reflectorless mode: Class 3R / Prism / sheet mode: Class 1 0.3 to 500m(1.0 to 1,640ft.) RS90N-K: 1.3 to 500m (4.3 to 1,640ft.) RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.) Angle measurement 0.5" / 1" (0.0001 / 0.0002gon, 0.002 / 0.005mil) Display resolution Accuracy (ISO 17123-3:2001) IACS (Independent Angle Calibration System) 1" 2" 1" / 5" (0.0002 / 0.001gon, 0.005 / 0.02mil) 3" - 5" 7" On one face Provided Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) / Collimation compensation available 30x / 2.5" 30x / 3.5" CX-101 CX-102 CX-103 CX-105 CX-107 Telescope Magnification / Resolving power Others Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m),Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels Display resolution 0.3 to 200m: (3 + 2ppm x D) mm, over 200 to 350m: (5 + 10ppm x D) mm over 350 to 500m: (10 + 10ppm x D) mm (3 + 2ppm x D) mm (2 + 2ppm x D) mm Accuracy (ISO 17123-4:2001) (D=measuring distance in mm) Interface and Data management Measuring time*7 Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight On both faces Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s) Display / Keyboard Bluetooth modem (factory option)*9 Interface On right instrument support Approx. 10,000 points USB flash memory (max. 8GB) Serial RS-232C, USB2.0 (Type A, for USB flash memory) Bluetooth Class 1, Ver.2.1+EDR, Operating range: up to 300m (980ft.)*10 General Laser-pointer*11 Coaxial red laser using EDM beam Guide light*11 Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.), Class 1 LED Levels 6’ (inner circle) 10' / 2mm Optical plummet Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom Laser plummet (option) Red laser diode (635nm±10nm), Beam accuracy: < =1.0mm@1.3m, Class 2 laser product Dust and water protection Operating temperature*12 IP66 (IEC 60529:2001) -20 to +50ºC (-4 to +122ºF)*2 Size with handle*8 Contorol panel on both faces: W191 x D181 x H348mm (W7.5 x D7.1 x H13.7in.) Contorol panel on one face: W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.) Weight with handle and battery Approx. 5.6kg (12.3 lb.) Power supply Battery Li-ion rechargeable battery Operating time (20ºC) Approx. 36 hours (single distance measurement every 30 seconds) BDC60: approx. 44 hours, BDC61: approx. 89 hours (single distance measurement every 30 seconds) Distance measurement Reflectorless*3 Reflective sheet*4/*5   Mini prisms One AP prism Three AP prisms Reflectorless Reflective sheet AP/CP prism Internal memory BDC70 detachable battery BDC70 External battery (option) Plug-in memory device Graphic Circular level Model CP01: 1.3 to 2,500m (8,200ft.), OR1PA: 1.3 to 500m (1,640ft.) 1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6 : 5,000m (16,400ft.) to 5,000m (16,400ft.) / Under good conditions*6 : to 6,000m (19,680ft.) Fine/Rapid: 0.001m / 0.01ft. / 1/8in. Tracking: 0.01m / 0.1ft. / 1/2in. Laser output *1 Measuring range (under average conditions*2 ) *1 IEC60825-1 Ed:2.0:2007 / FDA CDRH 21 CFR Part 1040.10 and 11 *2 Average conditions: Slight haze, visibility about 20km (12 miles), sunny periods, weak scintillation. *3 With Kodak Gray Card White Side (90% reflective). When brightness on measured surface is 30,000 lx. or less. Reflectorless range/accuracy may vary according to measuring objects, observation situations and environmental conditions. *4 When the measuring beam's incidence angle is within 30º in relation to the reflective sheet target. *5 Measuring range in temperatures of -30 to -20°C (-22 to -4°F) with Low Temperature models and 50 to 60°C (122 to 140°F) with High Temperature models: RS90N-K: 1.3 to 300m (4.3 to 980ft.), RS50N-K: 1.3 to 180m (4.3 to 590ft.), RS10N-K: 1.3 to 60m (4.3 to 190ft.) *6 Good conditions: No haze, visibility about 40km (25 miles), overcast, no scintillation. *7 Typical, under good conditions. Reflectorless measurement time may vary according to measuring objects, observation situations and environmental conditions. *8 Control panel location may vary depending on region or model. *9 Usage approval of Bluetooth wireless technology varies according to country. Please consult your local office or representative in advance. *10 No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain. *11 The laser-pointer and the guide light do not work simultaneously. *12 Low Temperature models:-30 to 50 °C (-22 to 122°F) and High Temperature models:-20 to 60°C (-4 to 140°F, No direct sunlight) are available on built-to-order basis. CX-101/CX-102/CX-103/CX-105/CX-107 SPECIFICATIONSTotal Stations CX Series Tradition Meets Innovation Reflectorless Total Stations CX Series Your local Authorized Dealer is: Specifications subject to change without notice ©2011 Topcon Corporation All rights reserved. -Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Topcon is under license.Other trademarks and trade names are those of their respective owners. - Designs and specifications are subject to change without notice. - Product colors in this brochure may vary slightly from those of the actual products owing to limitations of the printing process. Standard Accessories ■ LongLink™ data communications* ■ Advanced angle measurement systems ■ Super-long battery life ■ Waterproof, rugged, and operator friendly *Factory option ●CX main unit ●Battery (BDC70) ●Battery charger (CDC68) ●Power Cable (EDC113) ●Lens cap ●Lens hood ●Tool pouch ●Screwdriver ●Lens brush ●Adjusting pin x2 ●Cleaning cloth ●Operation manual ●USB memory key ●Laser caution sign-board ●Carrying case ●Carrying strap TOPCON CORPORATION 75-1 Hasunuma-cho, Itabashi-ku, Tokyo 174-8580, Japan Phone: (+81)3-3558-2993 Fax: (+81)3-3960-4214 www.topcon.co.jp SOKKIA SINGAPORE POSITIONING SALES PTE LTD 60 ALEXANDRA TERRACE, #08-07 THE COMTECH SINGAPORE 118502 PHONE : +65 6479 3966 FAX : +65 6479 4966 WEBSITE : www.sokkia.com.sg COMPANY REG. NO. : 201007531Z

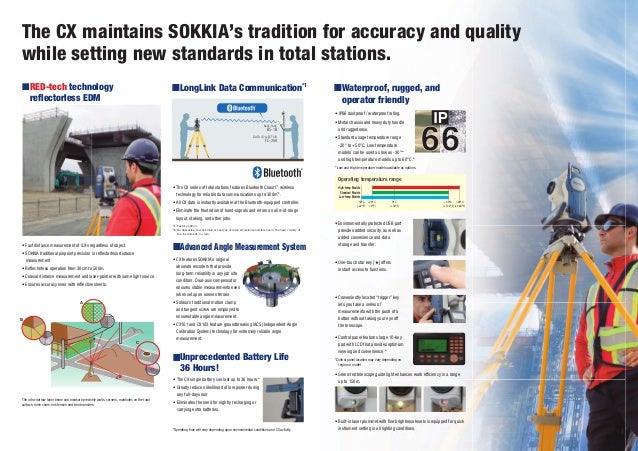

2. 2. RS-1B FC-250 DATA COLLECTOR Back Pack A B C C A B ■Waterproof, rugged, and operator friendly • The CX series of total stations features Bluetooth Class1*1 wireless technology for reliable data communications up to 300m*2 . • All CX data is instantly available at the Bluetooth-equipped controller. • Eliminate the frustration of hand-signals and errors on all mid-range layout, staking, and other jobs. ■LongLink Data Communication*1 • The CX single battery can last up to 36 hours.* • Greatly reduces likelihood of low power during any full-days wor • Eliminates the need for nightly recharging or carrying extra batteries. • CX features SOKKIA's original absolute encoders that provide long-term reliability in any job site condition. Dual-axis compensator ensures stable measurements even when setup on uneven terrain. • Sokkia’s traditional motion clamp and tangent screw are employed to ensurestable angle measurement. • CX101 and CX102 feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable angle measurement. ■Unprecedented Battery Life 36 Hours! ■Advanced Angle Measurement System • IP66 dustproof / waterproof rating. • Metal chassis and heavy duty handle add ruggedness. • Standard usage temperature range -20° to +50°C. Low temperature models can be used as low as -30°* and high temperature models up to 60°C.* * Low and High temperature models available as options. • Environmentally protected USB port provides added security, as well as added convenience and data storage and transfer. • One-touch star key [★] offers instant access to functions. • Conveniently located “trigger” key lets you take a series of measurements with the push of a button without taking your eye off the telescope. • Control panel features large 10-key pad with LCD that provides optimum viewing and convenience.* *Control panel location may vary depending on region or model. • Green/red telescope guide light enhances work efficiency in a range up to 150m. • Built-in laser plummet with five brightness levels is equipped for quick instrument setting in all lighting conditions.*Operating time will vary depending upon environmental conditions and CX activity. *1 Factory option *2 No obstacles, few vehicles or sources of radio emissions/interference in the near vicinity of the instrument, no rain. The CX maintains SOKKIA’s tradition for accuracy and quality while setting new standards in total stations. • Fast distance measurement of 0.9s regardless of object. • SOKKIA traditional pinpoint precision in reflectorless distance measurement • Reflectorless operation from 30cm to 500m. • Coaxial distance measurement and laser-pointer with same light source. • Ensures accuracy even with reflective sheets. The ultra-narrow laser beam can measure precisely walls, corners, manholes on the road surface, even chain-link fences and tree branches. ■RED-tech technology reflectorless EDM High-temp Models Standard Models Low-temp Models -30°C (-22°F) -20°C (-4°F) 0°C (+32°F) +50°C (+122°F) +60°C (+140°F) Operating temperature range
